Online FT-IR Analyzer

Short description

unaffected by the color of the system, effectively detects black and dark-colored systems.

Unaffected by solid components, suitable for the detection of liquid components in turbid liquid systems

ert (205)

Technical highlights

• Versatile Application:

① Unaffected by the color of the system , effective detection in various black and dark-colored systems.

② Unaffected by solid components , suitable for detecting liquid components in stirring liquid systems.

③ Applicable to high-temperature , high-pressure , strong acid , alkali, and highly corrosive systems.

• Fast: Obtain data within seconds.

• Intuitive: Real-time display of trends in raw materials and products.

• Powerful function: Simultaneously monitor multiple components and their concentration changes.

• Intelligent: Smart algorithms automatically analyze spectra.


Chemical/pharmaceutical/materials process development and production requires quantitative analysis of components. Usually, offline laboratory analysis techniques are used, where samples are taken to the laboratory and instruments such as chromatography, mass spectrometry, and nuclear magnetic resonance spectroscopy are used to give information on the content of each component. The long detection time and low sampling frequency cannot meet many real-time monitoring needs .

JINSP provides online monitoring solutions for chemical, pharmaceutical, and material process research and production. It enables in-situ, real- time, continuous, and rapid online monitoring of the content of each components in reactions.


Product specifications

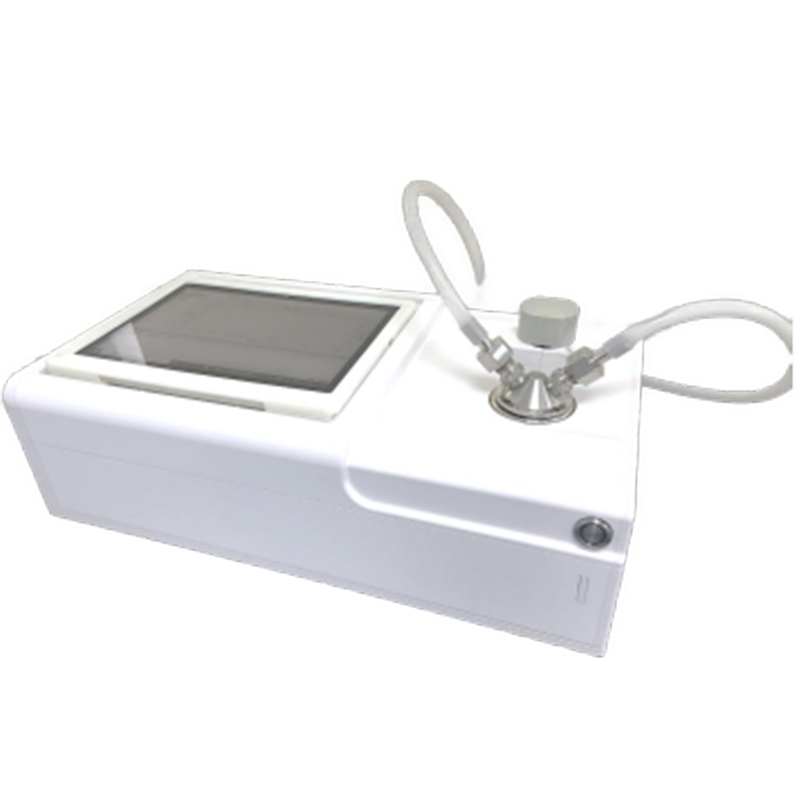

Flow cell Immersion probe
Design/Appearance   ert (238)  ert (237)


51 cm(width) × 30 cm(depth) × 25 cm(height)


≤15 kg

Spectral resolution

2 cm-1 , 4 cm-1 , 8 cm-1  optional

Sample type Strong acid, strong alkali, strong corrosive


10.5-inch capacitive touch screen, supports multi-touch and multi-angle folding fixation

Spectral range

500-5000 cm-1 600-1800 cm-1
Temperature withstand -50 ~ 100 ℃ -150 ~ 230 ℃
Pressure withstand 2 MPa 10 MPa
Fiber length - 1.5 m, 3 m optional
Dimensional interface Φ6, 1/8, 1/4 optional (hard pipes use ferrule joints, hoses use pagoda heads) Length 300 mm, diameter 6.35 mm (Hastelloy)
Length 150 mm, diameter 6.35 mm (PEEK)
Material 316 stainless steel, 304 stainless steel,Hastelloy C276, Monel alloy, TA2 optional Hastelloy, PEEK optional


IT2000CE can connect a bypass to the flow cell in the continuous flow reactor for online monitoring. It is suitable for continuous flow or tubular reactors. It can also use an immersion probe to penetrate deep into the liquid surface of the reaction system to monitor each reaction component, more suitable for kettle batch reactors.
