Application of Jinsp Fiber Optic Spectrometers in Color Measurement

Spectrometers play a crucial role in color measurement by determining the color parameters of an object through the analysis of its reflected or transmitted spectral information.



1. Basic Principle of Color Measurement with Spectrometers

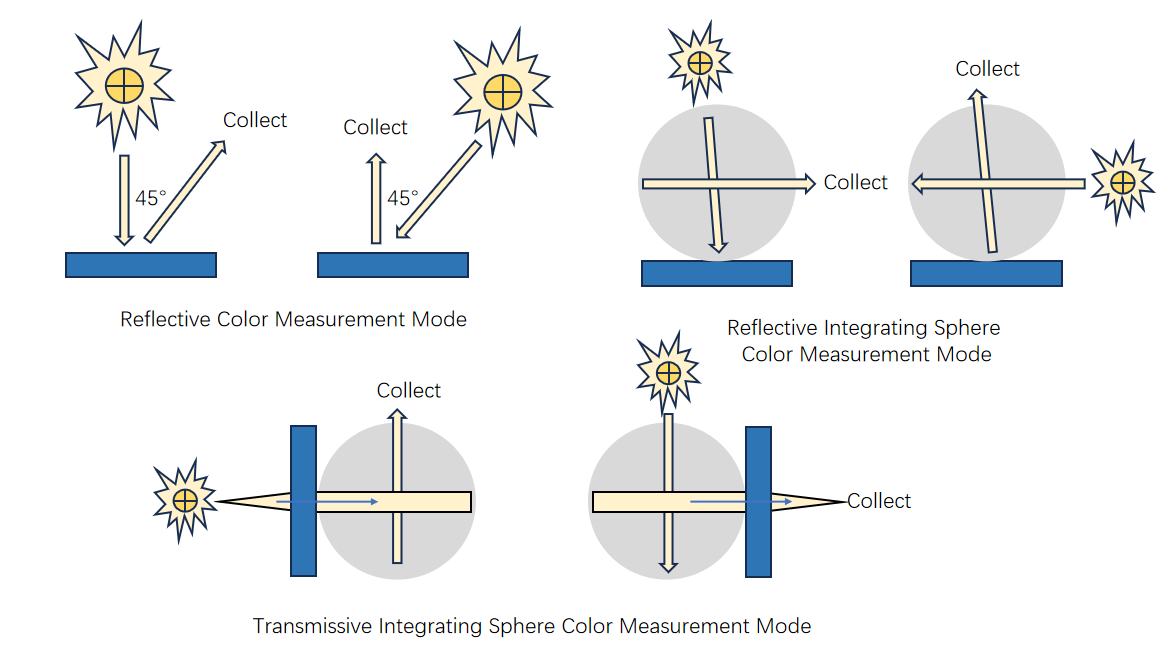

The basic principle of color measurement with a spectrometer is based on the reflective or transmissive properties of an object's surface. When a light source illuminates the surface of an object, the object selectively reflects or transmits specific wavelengths of light, as shown in the figure below. The spectrometer captures these reflected or transmitted spectral data and processes and analyzes them to determine the color parameters of the object. By selecting specific wavelengths or a range of wavelengths, the transmissive and reflective characteristics of the object are calculated, which further computes the tristimulus values (X, Y, Z) of the object’s color. This is commonly used in scenarios requiring high-precision color measurements, such as research and quality control.

135522

2. Color Calculation Theory

Color can be represented by the tristimulus values X, Y, and Z, which are calculated using the standard color matching functions of the CIE 1931 standard observer, the spectral power distribution of the illuminant, and the spectral characteristics of the object (transmission or reflection ratio):


Here, P(λ)is the spectral power distribution of the illuminant, R(λ) is the object's spectral characteristic (spectral reflectance or transmittance), and x(λ), y(λ), z(λ) are the CIE 1931 standard colorimetric observer’s color matching functions for a 2° field of view. The normalization factor k ensures that the Y value of a perfect diffuse reflector equals 100:


3. Advantages of Using Spectrometers for Color Measurement

1) Objectivity: Spectrometers measure color without relying on subjective human judgment, providing more objective and accurate color data.

2) High Precision: Through precise spectral measurements and calculations, spectrometers can deliver high-precision color parameters.

3) Repeatability: Spectrometers provide consistent color measurements, meaning the color parameters of the same object measured at different times and under different conditions should be consistent.



4. Applications of Spectrometer Color Measurement

Spectrometer color measurement is widely applied in various fields, including but not limited to:

1) Electronics: Color calibration and quality control of display devices such as mobile phone screens and television screens.

2) Textiles: Color detection and matching of textiles such as clothing and fabrics.

3) Paints and Coatings: Color measurement and quality control of automotive paints, architectural coatings, etc.

4) Food: Color detection and quality assessment of foods such as fruits and vegetables.



5. Product Recommendation

The resolution of the Jinsp SR50C/SR75C fiber optic spectrometers is sufficient to meet the testing requirements for color measurement, which does not demand high spectral resolution. In addition, the Jinsp SR50C/SR75C fiber optic spectrometers can provide high-precision spectral data and are very portable, sturdy, and easy to operate. For more details, please visit Universal Compact Fiber Spectrometer - JINSP Company Limited (jinsptech.com)



6. Product Advantages

● Small size and lightweight

● High resolution

● High sensitivity

● High measurement accuracy and consistency
