The signal-to-noise ratio (SNR) of a spectrometer is a crucial performance indicator that reflects the relative relationship between the spectral signal and background noise. A higher SNR indicates less noise interference with the signal, resulting in higher quality spectral data. A high SNR means that under the same measurement conditions, the spectrometer can more accurately detect spectral signals, reducing errors caused by noise interference. Therefore, SNR is an important metric for evaluating the measurement accuracy and sensitivity of a spectrometer.
Definition: The SNR of a spectrometer is the ratio of the intensity of the spectral signal to the noise intensity at a specific signal strength. This is typically calculated by dividing the signal intensity by the noise intensity.
Influencing Factors: The SNR of a spectrometer is affected by various factors, including the brightness of the light source, the optical design of the entrance slit and detector, the sensitivity of the detector, and the characteristics of the electronics (e.g., low-noise electronics).
Evaluation Standards: The SNR of fluorescence spectrometers is typically calculated using two methods. One method is the ratio of the difference between the water Raman peak signal and the background signal to the square root of the background signal. The other method involves dividing the difference between the peak signal and the background signal by the RMS (root mean square) value of the noise on the background signal. For the instrument’s SNR, it is proportional to the square root of the measurement time, proportional to the resolution, and proportional to the light flux.
Calculation Method: In practical measurements, the SNR can be calculated by performing multiple scans without light to calculate the average baseline count value for each pixel, then performing multiple scans with light to calculate the average output count value and standard deviation for each pixel.
SNR=(S-D)/ σ ρ
Where SNR represents the signal-to-noise ratio, S represents the average spectral intensity of the sample (with light), D represents the average dark spectrum (without light), σ represents the standard deviation of the sample (with light), and ρ represents the number of pixels.
Related Factors:
● Detector: The performance of the detector significantly impacts the SNR.
● Grating: The efficiency and design of the grating affect the signal transmission and collection.
● Optical Design: The optical path design influences the overall performance of the spectrometer.
Methods to Improve SNR:
● Increase the exposure time of the spectrometer.
● Increase the number of averages.
● Subtract the dark background.

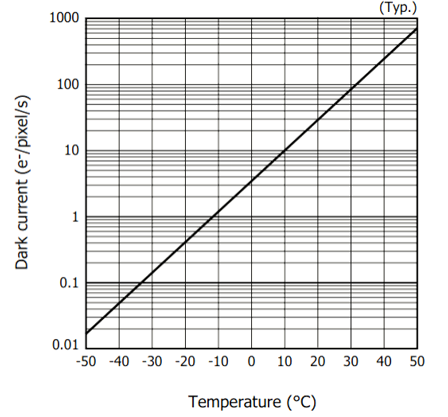

● Lower the cooling temperature to reduce dark current, which increases SNR, as shown in the relationship between temperature and dark current.
What Factors Affect the Spectrometer's SNR?
The SNR of a spectrometer is influenced by several factors, including:
● Light Source: The brightness, stability, and spectral distribution of the light source directly affect the intensity and stability of the spectral signal, thus influencing the SNR.
● Optical Path Design: The design of the optical path, including the entrance slit, lenses, grating, and filters, affects the efficiency of signal transmission and collection, impacting the SNR.
● Detector: The performance of the detector is a key factor affecting the SNR. The detector’s sensitivity, noise level, and response speed directly impact the quality of the detected spectral signal.
● Electronic System: The electronic system of the spectrometer, including amplifiers, filters, and analog-to-digital converters, affects the SNR. The noise level and gain stability of the electronic system influence the final quality of the spectral signal.
● Environmental Factors: Environmental factors such as temperature, humidity, and vibration can also impact the SNR of the spectrometer. These factors can cause changes in the performance of the spectrometer’s internal components, affecting the stability and SNR of the spectral signal.
The SNR of a spectrometer is related to multiple factors, including the light source, optical path design, detector, electronic system, and environmental conditions. In designing and using a spectrometer, these factors must be comprehensively considered to optimize performance and improve the SNR for more accurate spectral information acquisition.
