In optical imaging systems, aberration refers to the deviation between actual imaging and ideal imaging. This deviation can arise from various factors, with chromatic aberration being a significant type of aberration. Chromatic aberration, also known as color aberration, occurs due to the variation of the refractive index of lens materials with wavelength, causing different wavelengths of light to focus at different points. This article will explore the definition, principle, impact on optical imaging, and knowledge of chromatic aberration in optical design.
1. Definition of Chromatic Aberration

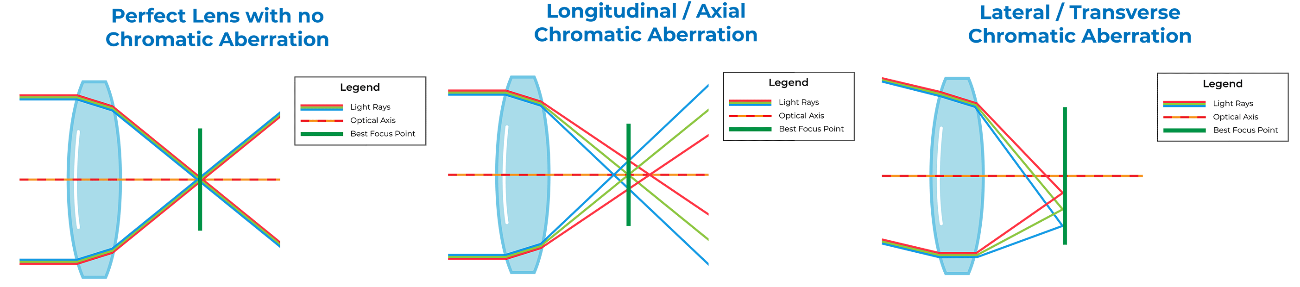

Chromatic aberration is the phenomenon where an optical system cannot focus different wavelengths of colored light at the same point. This primarily arises from the fact that lens materials have different refractive indices for different wavelengths of light, known as the dispersion phenomenon. Chromatic aberration can be further divided into axial (position) chromatic aberration and lateral (magnification) chromatic aberration. Axial chromatic aberration refers to the positional differences of images formed by different wavelengths along the optical axis, while lateral chromatic aberration refers to differences in image height (magnification) caused by varying wavelengths.
Axial (Position) Chromatic Aberration: Different colors focus at different positions relative to the optical axis.
Lateral (Magnification) Chromatic Aberration: Different colors produce images at different heights.
2. Principle of Chromatic Aberration
The variation of the refractive index of lens materials with wavelength is the primary cause of chromatic aberration. When white light (composite light) passes through a lens, different wavelengths are refracted to different extents due to their varying refractive indices, resulting in them not focusing on the same plane. Specifically, shorter wavelengths of light (such as blue) generally have a higher refractive index than longer wavelengths (such as red), causing them to be refracted more strongly and thus forming different focal points after the lens.
3. Impact of Chromatic Aberration on Optical Imaging
The impact of chromatic aberration on optical imaging is significant. It can cause color fringing in images, reducing clarity and contrast. In optical devices such as cameras, microscopes, and telescopes, the presence of chromatic aberration directly affects imaging accuracy and quality. For example, in photography, chromatic aberration may result in colorful fringes or blurriness at the edges of photos; in microscopes, it may lead to unclear details or color distortion in observed objects.
4. Knowledge of Chromatic Aberration in Optical Design
In optical design, chromatic aberration is a crucial issue that requires special attention. To reduce or eliminate its effects, designers typically take the following measures:
● Optimize Lens Design: By appropriately designing parameters such as lens curvature, thickness, and refractive index, chromatic aberration can be minimized. For instance, using low-dispersion materials (like fluoride glass) for lenses can reduce the refractive index differences between different wavelengths of light.
● Use Multi-Lens Combinations: Multiple lenses can compensate for each other's chromatic aberration, thereby improving the overall imaging quality of the optical system. By precisely calculating and optimizing the parameters of the lens combinations, effective correction of chromatic aberration can be achieved.
● Introduce Special Optical Elements: Elements such as aspherical lenses and diffractive optical elements can more effectively correct chromatic aberration. Aspherical lenses can correct the refractive differences of light at different wavelengths by altering the lens surface shape, while diffractive optical elements utilize the phenomenon of light diffraction to correct chromatic aberration.
● Adjust Incident Light Angle: In some cases, changing the angle of incident light can also reduce the impact of chromatic aberration. For example, in telescope design, adjusting the tilt angles of the primary and secondary mirrors can optimize the light path and minimize chromatic aberration.
Chromatic aberration is an important type of aberration in optical imaging systems that significantly affects imaging quality. In optical design, various measures must be taken to reduce or eliminate the effects of chromatic aberration to enhance the imaging quality of optical systems. By thoroughly studying the theory of chromatic aberration and employing effective correction methods, the development and advancement of optical imaging technology can be further promoted.
