In optical imaging, aberration is an important concept that cannot be ignored as it directly impacts the performance and quality of the imaging system. Field curvature, a type of aberration, significantly affects the flatness and sharpness of an image. This article explores the definition, principles, and application of field curvature in optical design, along with methods for its correction.
1. What is Field Curvature?
Field curvature, also known as curvature of field, refers to a phenomenon where, although each object point in a flat plane can form a clear image point after passing through a lens system, these image points do not lie on a common plane but instead form a curved surface. As a result, on an ideal flat image plane, we observe a variation in sharpness, where the central part appears clearer while the edges tend to blur.
2. Principles of Field Curvature
The occurrence of field curvature is closely related to the imaging characteristics of the lens system. Ideally, light rays passing through the lens should converge at a single point. However, in reality, due to factors such as lens material, shape, refractive index, and the angle of incidence of the light, the focal points of light rays from different positions do not coincide. Specifically, edge rays focus at a different point compared to central rays, resulting in the entire image surface appearing curved.
Field curvature is also influenced by the field of view. As the field of view increases, the difference between edge rays and central rays becomes more pronounced, making field curvature more evident. Therefore, correcting field curvature is particularly important in wide-field imaging systems.

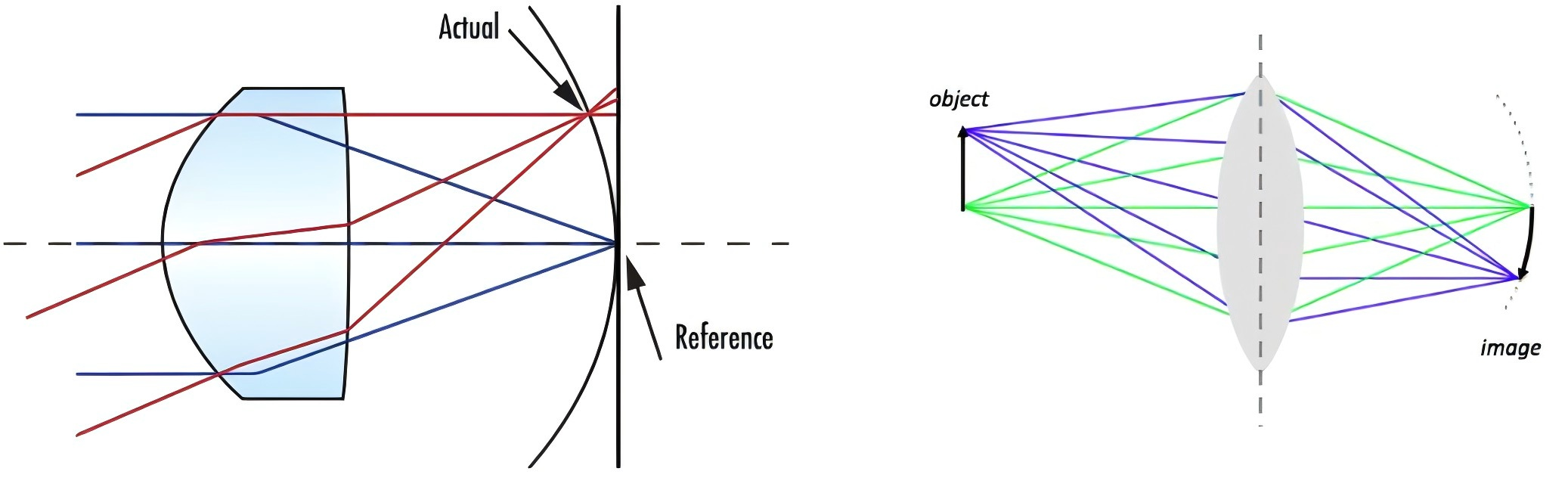

Field curvature: The ideal image surface for focusing points of a flat object plane is curved.
3. Impact of Field Curvature on Optical Imaging
Field curvature primarily affects optical imaging in the following ways:
● Inconsistent Image Sharpness: Due to field curvature, different areas on the imaging plane exhibit varying levels of sharpness. Typically, the center of the image appears sharper, while the edges may become blurry. This inconsistency in sharpness directly impacts the overall image quality.
● Difficulties in Observation and Measurement: In cases of significant field curvature, the observer cannot view the entire image surface clearly at once. This is particularly problematic for precision measurements or observations, as it requires constant adjustment of the viewing position or focus to obtain a clear image.
● Limited Imaging Range: Field curvature can also restrict the imaging range of the system. In wide-field imaging, the effects of field curvature are more pronounced, potentially causing severe distortion or lack of clarity in the edges of the image.
No matter where the image plane is positioned, part of the image will always be clear, while another part will remain unclear.
4. Understanding Field Curvature in Optical Design
In optical design, field curvature is a critical factor to consider. To reduce its impact on image quality, designers can take the following measures:
● Optimize Lens Design: By adjusting parameters such as the curvature radius, thickness, and material of the lens, the imaging performance can be optimized. For instance, aspherical lenses are more effective in correcting field curvature and other aberrations.
● Lens Combinations: Using multiple lenses together allows for correction of field curvature through their interaction. The design of lens combinations requires careful consideration of each lens's parameters and positional relationships.
● Incorporate Apertures: Introducing apertures in the lens system can limit the aperture of the light rays, reducing the impact of field curvature. By adjusting the size and position of the aperture, the imaging performance can be optimized.
● Use Advanced Optical Design Software: Utilizing advanced optical design software (such as Zemax or CODE V) for simulation and optimization analysis allows for better design outcomes. These tools can simulate the imaging effects of different design schemes.
● Consider Practical Application Scenarios: Optical design should take into account the specific needs of practical applications. For example, in designing camera lenses, factors such as focal length, aperture size, and imaging range should be considered in relation to field curvature. In telescope design, the observation target and distance must be considered in terms of field curvature requirements.
Field curvature, as an important concept in aberration theory, plays a critical role in optical design. By understanding its definition, principles, and correction methods, we can better optimize the performance and quality of imaging systems. Techniques such as lens combination, aperture optimization, and the use of aspherical lenses can effectively reduce or eliminate field curvature, resulting in clearer, flatter images. With ongoing technological advancements and innovations, we are likely to explore more efficient and precise methods for field curvature correction in future optical designs.
