A collimating mirror is an optical component used to convert a light beam into parallel or quasi-parallel light. Below is a detailed introduction to the collimating mirror:
1 Definition and Principle
A collimating mirror is an optical element typically made from convex lenses, concave mirrors, or standard plane mirrors. It operates on the principle of mirror reflection, ensuring that the incident light and the reflected light travel in precisely the same direction by aligning the light rays perpendicularly to the mirror surface.
2 Structure and Composition
Mirror Tube: Usually comprises a mirror tube and a field lens.
Field Lens: Located at the front of the collimating mirror tube, it is used to check the direction of the target, expand the field of view, and assist in accurate correction and measurement of the target.
3 Application Fields
Precision Measurement and Scientific Experiments: Widely used in optical measurements such as precise measurements of length, angle, shape, etc.
Engineering Survey and Construction: Used to adjust levels, measure ground height differences or terrain undulations, and for calibration during the installation and construction of channels, water flows, pipes, etc.
Instrument Calibration: Works in conjunction with distance meters or theodolites to improve measurement accuracy and calibration precision.
Laser Technology: Also used as a laser beam expander, commonly employed in laser scanning, interferometry, or telemetry applications.
4 Types
Reflective Collimating Mirrors: Typically use fully reflective copper mirrors.
Transmissive Collimating Mirrors: Made from materials like zinc selenide lenses.
5 Characteristics
Simple structure, low cost, and small size.
Capable of focusing the light beam into a parallel light beam, making the light direction and path easier to track and analyze.
6 Product Parameters
Specific parameters may include thickness tolerance, surface finish, size tolerance, protective chamfer, material, etc.
Differences Between Reflective and Transmissive Collimating Mirrors?
Reflective and transmissive collimating mirrors differ in principles, structure, and characteristics. The choice between these types depends on specific application needs, optical performance requirements, and cost considerations.
Principle
Reflective: Based on the principle of mirror reflection, maintaining beam collimation through mirror reflection.
Transmissive: Based on the principles of refraction and transmission through transmissive materials to maintain beam collimation.
Characteristics
Reflective: Simpler structure, potentially lower cost, but may require more precise mirror surfaces to ensure high performance.
Transmissive: May require more complex lens design and material selection to achieve high-performance beam collimation but potentially offers higher optical performance.
Collimating mirrors are essential optical instruments widely used in various fields requiring precise beam control and measurement. By leveraging the principles of mirror reflection and structural design, they effectively convert light beams into parallel or quasi-parallel light, enhancing measurement and calibration accuracy.

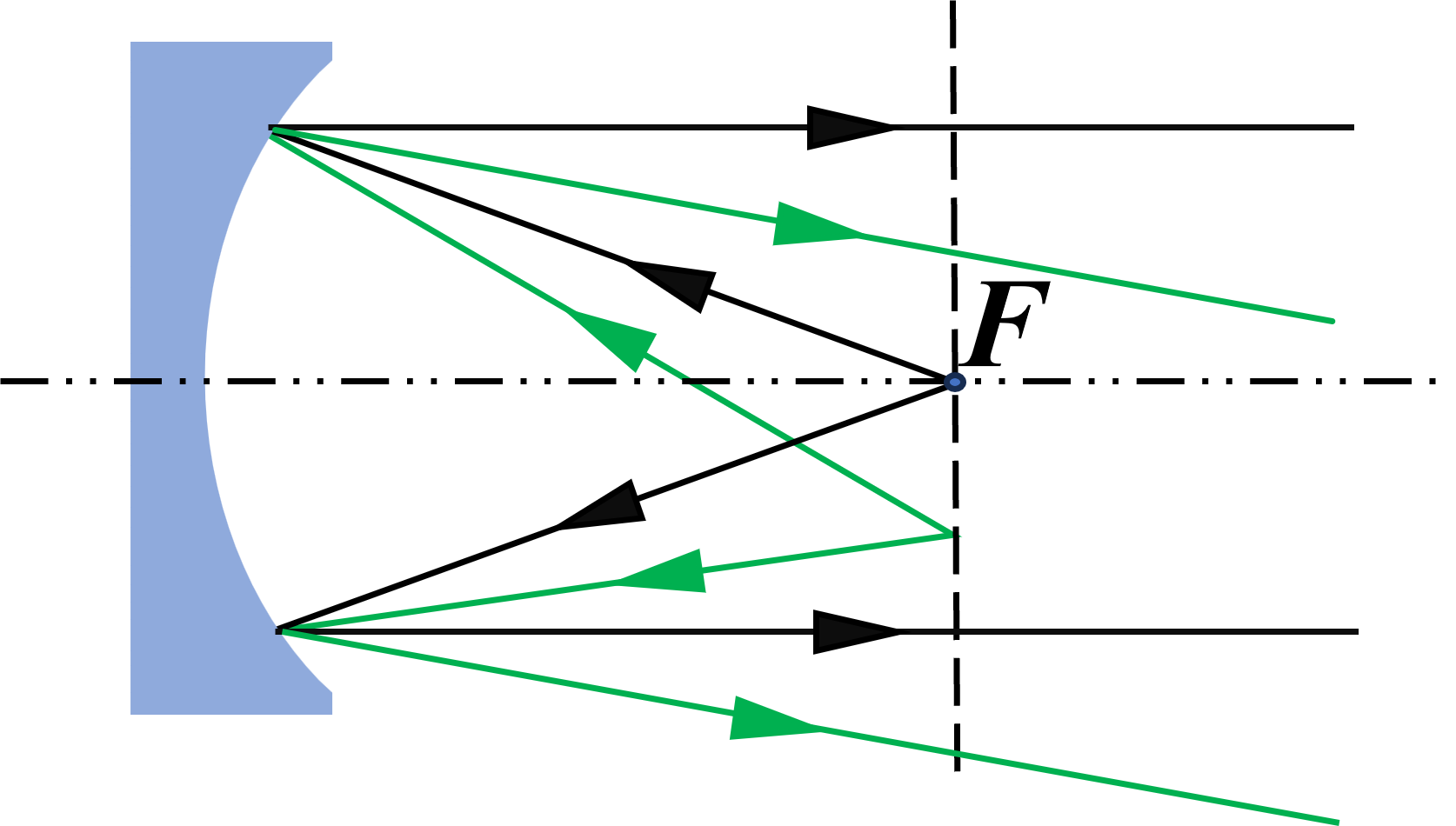

![反射式准直](http://www.jinsptech.com/uploads/反射式准直.png)
