In the vast field of optical research, spherical aberration is a fundamental imaging error that significantly affects the performance of optical systems. This article delves into the definition, principles, and correction methods of spherical aberration from a professional perspective.
1. Definition and Principle of Spherical Aberration
● Definition
Spherical aberration, also known as spherical lens aberration, occurs when light rays from an object point on the optical axis pass through a spherical lens. The central and peripheral regions of the lens have different converging abilities, causing light rays to fail to converge at a single point on the image plane, instead forming a circular blur.
● Principle
The root cause of spherical aberration lies in the spherical shape of the lens. When parallel light rays pass through the lens, the central region of the lens, with its smaller curvature, refracts light less, allowing paraxial rays to focus accurately at a point on the optical axis (the Gaussian image point). However, the peripheral region of the lens, with its greater curvature, refracts light more, causing these rays to focus at different points on the optical axis, deviating from the Gaussian image point. This deviation in focusing ability between the center and the edge of the lens is the cause of spherical aberration.

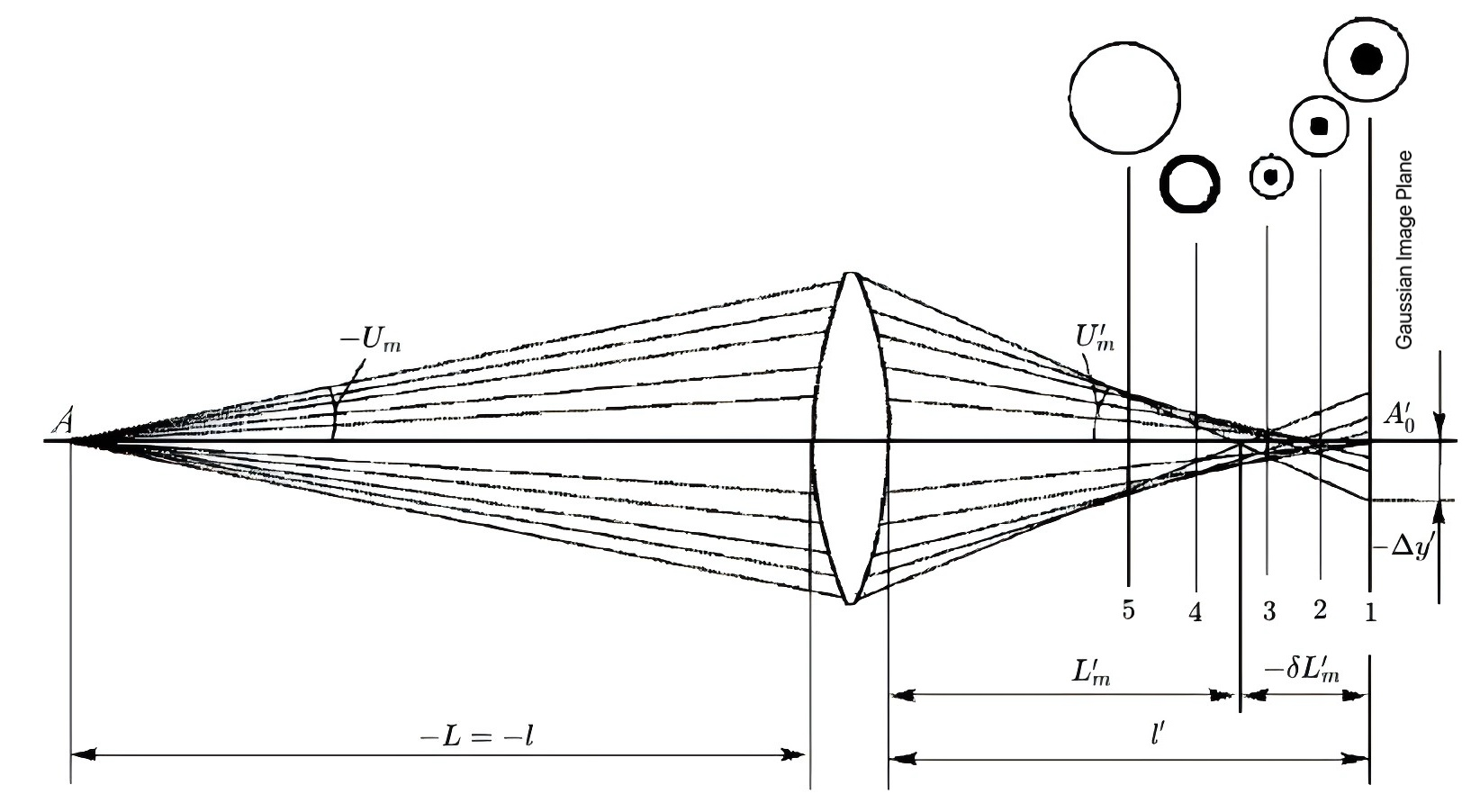

Spherical aberration: When light beams from an object point on the optical axis pass through a spherical lens, the light rays from different positions on the lens converge at different points along the optical axis.
2. Related Knowledge of Spherical Aberration
● Characteristics
Spherical aberration is the only monochromatic aberration that occurs for on-axis point imaging. While spherical aberration also exists for off-axis points, it is often accompanied by other types of aberrations, such as coma and astigmatism. The size of spherical aberration depends on factors like lens shape, aperture, focal length, and the angle of incident light.
● Measurement
Spherical aberration is typically measured by the axial distance between the actual light-ray intersection on the image plane and the intersection of the paraxial rays (i.e., the Gaussian image point). The larger this distance, the more severe the spherical aberration, and the poorer the image quality.
● Impact
Spherical aberration primarily affects image quality by reducing sharpness and resolution. A point light source becomes a blurred spot on the image plane, causing the image to lose detail and the edges to appear fuzzy. In applications requiring high-precision imaging, such as microscopes, telescopes, and camera lenses, correcting spherical aberration is particularly important.

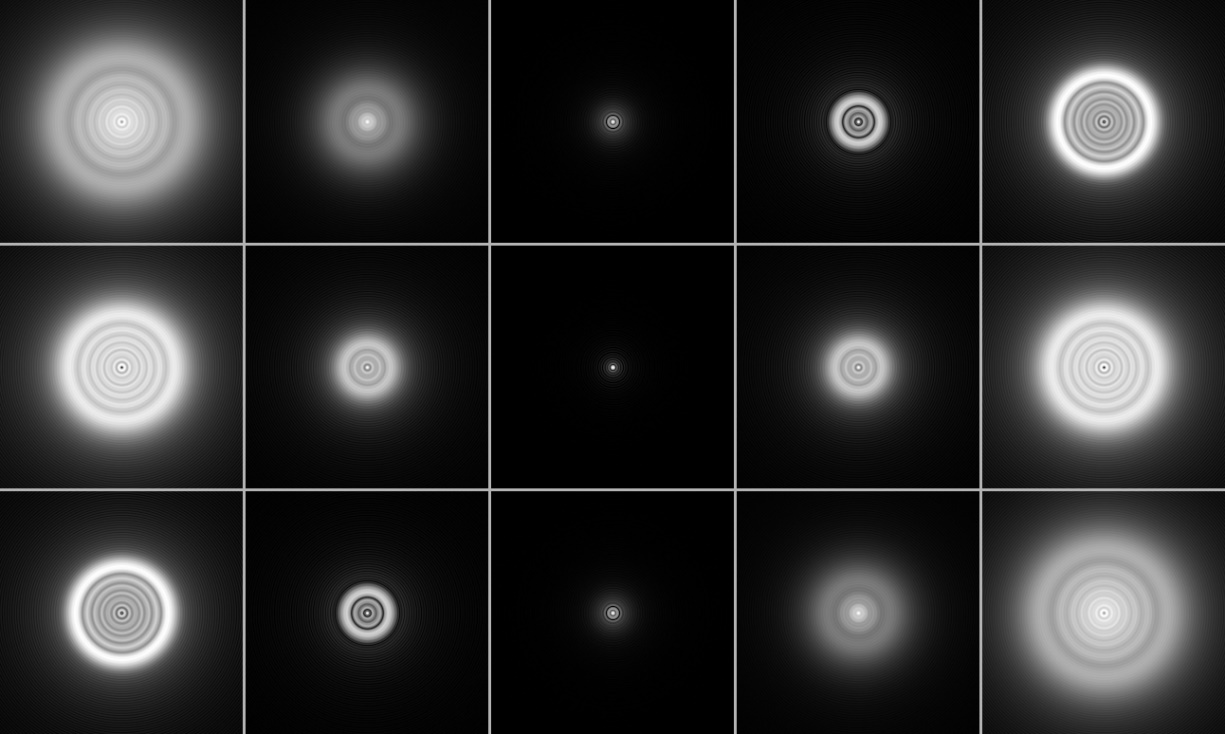

Spherical Aberration Image
3. Spherical Aberration in Optical Design
Correcting spherical aberration in optical design is a complex and precise process. Designers use a variety of strategies and techniques to reduce or eliminate its effects:
● Aspheric Lenses
Aspheric lenses are one of the most effective methods for correcting spherical aberration. Unlike spherical lenses, the surface shape of aspheric lenses can be precisely designed to better control the light's path and refraction. By using aspheric lenses, spherical aberration can be significantly reduced or even eliminated.
● Lens Combinations
Combining multiple lenses allows for precise light focusing and mutual compensation of aberrations. By carefully designing the curvature, thickness, and spacing of the lenses, optical systems can minimize aberrations. This approach is widely used in complex optical systems like camera lenses and telescopes.
● Optical Coating
Coating the lens surface with specific thin films can modify the reflection and transmission properties of light, allowing for fine-tuning of spherical aberration. Optical coatings not only reduce spherical aberration but also improve lens transmittance and anti-reflective performance.
● Computer-Aided Design
As computer technology advances, computer-aided design (CAD) software plays an increasingly important role in optical design. With precise simulations and optimization algorithms, designers can quickly calculate lens imaging performance under different design parameters and find the optimal solution to minimize spherical aberration.
● Advanced Manufacturing Techniques
High-precision manufacturing and detection technologies, such as ultra-precision machining and ion beam polishing, allow for precise control over lens surface shape, resulting in optical components with superior imaging performance.
In conclusion, spherical aberration is a key factor in optical design, with a significant impact on imaging quality. By thoroughly understanding its definition, principles, and related knowledge, and by applying appropriate correction strategies and technologies, we can effectively reduce or eliminate its effects, enhancing the overall performance and value of optical systems. As optical research and technology continue to advance, future innovations will further address spherical aberration and other optical challenges, driving the ongoing progress of optical science and engineering.
