In optical imaging systems, distortion is an important type of aberration that describes the deformation between the actual image plane and the ideal image plane. Distortion not only affects the geometric shape of the image but can also negatively impact the visual quality of the image and subsequent processing. This article explores the definition, principles, specific effects on optical imaging, and methods for handling and optimizing distortion in optical design.
1. Definition of Distortion

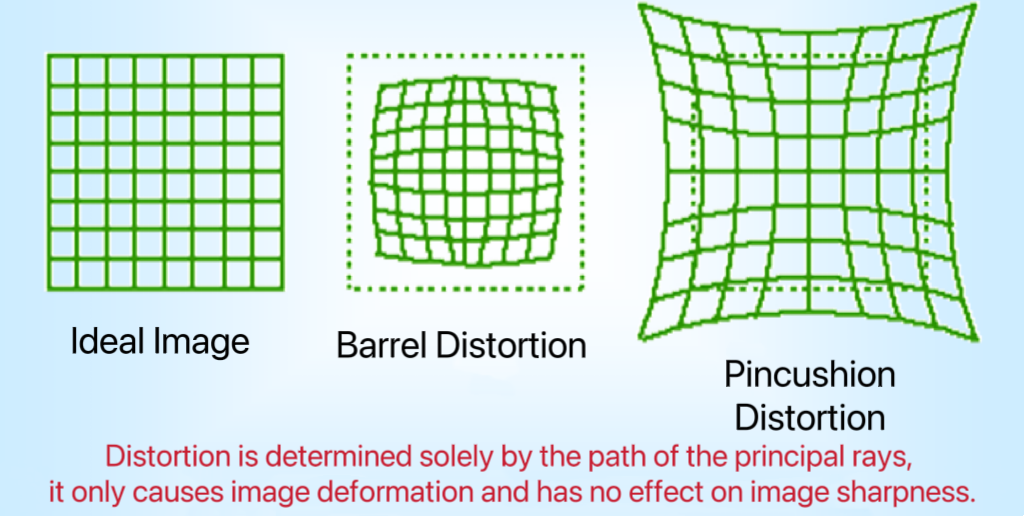

Distortion refers to the shape changes that occur between the actual image plane and the ideal image plane after light passes through an optical system (such as lenses or mirrors). This change causes the image to lose its original geometric proportions, leading to warping or deformation. Distortion is typically divided into two types: positive distortion (also known as pincushion distortion) and negative distortion (also known as barrel distortion). Positive distortion causes the image to curve inward at the center, while negative distortion makes the center of the image bulge outward.
2. Principles of Distortion
The formation of distortion is mainly due to the geometric characteristics of the optical system and the refraction or reflection of light. Ideally, an optical system should project an object onto the image plane proportionally, but in reality, various factors (such as lens curvature, refractive index, angle of light incidence, etc.) cause light from different fields of view to deviate to varying degrees during imaging, resulting in distortion.

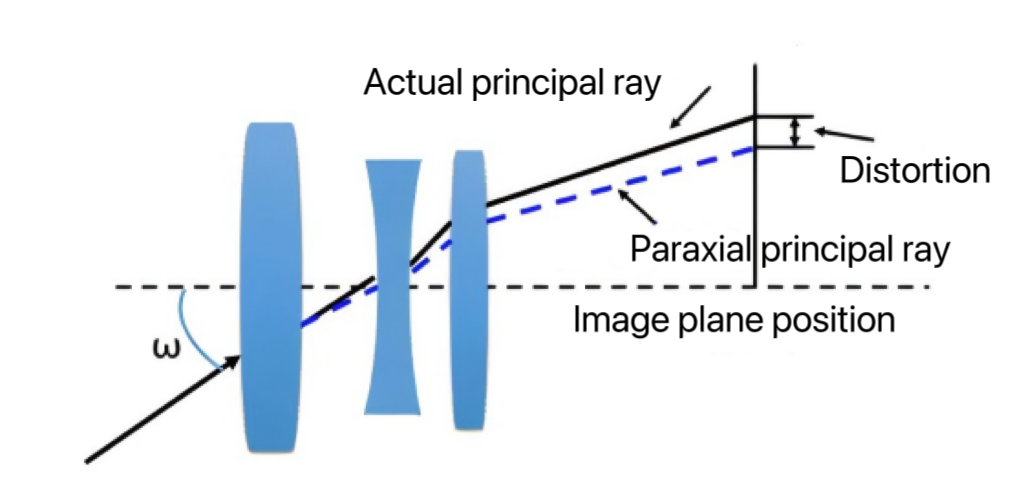

Specifically, distortion is closely related to the imaging differences of the principal ray, which is the light ray passing through the center of the optical system. In an ideal case, all principal rays should converge at the same point (the image point), but in practice, due to distortion, the intersection of the principal rays on the image plane deviates from its ideal position, leading to image deformation.
3. Impact of Distortion on Optical Imaging
Distortion affects optical imaging in several ways:
● Image Shape Deformation: Distortion is the only geometric aberration that does not alter image sharpness, but it causes noticeable image warping or deformation. This not only affects the visual aesthetics of the image but can also hinder subsequent image processing and analysis.
● Reduced Measurement Accuracy: In applications requiring precise measurements (such as aerial surveying or robotic vision), distortion can directly reduce the accuracy of results. Since distortion alters the size and shape of objects in the image, the actual objects cannot be accurately represented.
● Poor Visual Experience: In photography and videography, distortion can degrade the overall aesthetic quality of the image, negatively impacting the viewer's experience. Distortion is particularly pronounced when using wide-angle lenses, where the edges of the image may show significant warping and deformation.
4. Distortion in Optical Design
In optical design, distortion is a critical factor that must be carefully considered. To minimize the impact of distortion on image quality, designers can take the following measures:
● Optimizing Lens Design: By adjusting parameters such as lens curvature, thickness, and material, the imaging performance of the lens can be improved. Aspherical lenses, with their unique surface shapes, are especially effective at correcting distortion and other aberrations.
● Lens Combinations: Using multiple lenses in combination can help correct distortion through their mutual interactions. The design of lens combinations requires careful consideration of parameters and spatial relationships to achieve the best imaging results.
● Adjusting Aperture Position: Changing the position of the aperture helps control the angles and paths of light rays from different fields of view, optimizing image quality. The larger the field of view, the more noticeable the distortion, since the deviation of light rays from the optical axis increases with the field of view, leading to greater distortion.
● Introducing Correction Elements: Specialized correction elements (such as distortion correction plates) can be incorporated into the optical system to further reduce distortion. These correction elements often have specific surface shapes and material properties designed to target different types of distortion.
● Using Symmetrical Structures: In single refracting surfaces, placing the aperture stop at the center of curvature prevents distortion. For a single thin lens or a group of thin lenses, aligning the aperture stop with the lens prevents distortion.
Distortion, as a key component of aberration theory, has a significant impact on optical imaging quality. By thoroughly understanding its definition, principles, and effects on imaging, we can improve optical design and enhance imaging performance. In optical design, it is important to consider multiple factors and adopt appropriate strategies to minimize distortion and achieve high-quality imaging. As technology continues to advance, more effective methods for correcting distortion will likely emerge to meet growing imaging demands.
