RS2000/RS2100 Online Raman Analyzer

Short Description:

JINSP® RS2000/RS2100 online Raman analyzer is used for in situ, real-time and continuous monitoring of multiple components in chemical reactions.

In fine chemicals industry, it has been applied in process development, optimization, and studies in reaction mechanism, kinetics, and crystal forms. In particular, it is well-suited for dangerous processes such as nitration, chlorination, fluorination, hydrogenation, and diazotization.

In biopharmaceutical industry, it has also been applied in biological processes analysis including aseptic biological fermentation, peptide drug synthesis, enzyme catalytic reaction, etc.


  • :
  • Product Detail

    Product Tags

    Benefit Highlights

    • Fast: Data acquired in seconds

    • Universal: Several types of sampling probes and flow cells available for different reactors including continuous flow reactors

    • Intuitive: Real-time process data of concentrations of reactants and products

    • Highly applicable: Reliable measurements under high temperature, high pressure, and in strong acid/alkali, or strong corrosive liquid

    • Multi-functional: Simultaneous measurement of multiple components

    • Intelligent: Intelligent algorithm automatically qualify and quantify components with 30,000+ standard spectrum in the database

    Application Scenarios

    Specifications

    Immersion probe Flow cell Side window
    Application mode












    Laser wavelength 785 nm (RS2000) or 1064 nm (RS2100)
    Probe length 35 cm, customization supported
    Channel Single channel
    Probe PR100, PR200 and PR300 probes available for different reactors and reaction conditions
    Flow cell FC100, FC200 and FC300 flow cells available for various pipe connections and reaction conditions
    Window Resistant to strong acid/alkali and hydrofluoric acid
    Software functions Online monitoring, continuous data acquisition, data analysis, data comparison, method research, modeling, etc.
    Temperature Operating temperature: 0 ~ 40 ºC; storage temperature: –20 ~ 55 ºC

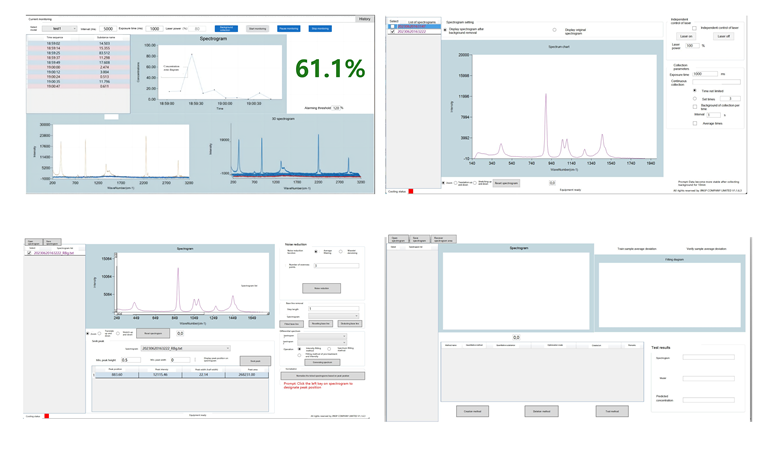

    Software functions

    Online monitoring







    Data analysis

    Data acquisition







    Method Research
