RS2600PAT Multi-Gas Analyzer

Short Description:

JINSP® RS2600PAT multi-gas analyzer is based on Raman spectroscopy and can detect all gases except noble gases, enabling simultaneous online analysis of multiple gases including:

•Petrochemical industry: alkane, alkene and alkyne gases such as CH4, C2H6, C3H8, C2H4, etc.
•Fluorine chemical industry: corrosive gases such as F2, BF3, PF5, Cl2, HCl, HF, etc.
•Metallurgical industry: N2, H2, O2, CO2, CO, etc.
•H2, D2, T2, HD, HT, DT and other gas isotopologues.

Product Detail

Product Tags

Technical highlights

•  Multi-component: simultaneous online analysis of multiple gases
•  Universal: >500 types of gases are detectable except noble gases
•  No need for pressure control: Quantification is not affected by changes in sample gas pressure
•  Rapid response: Complete a single detection within seconds
•  Wide quantitative range: detection limit is as low as ppm level, and the measurement range can be as high as 100%

Typical spectra

Gas mixture analysis

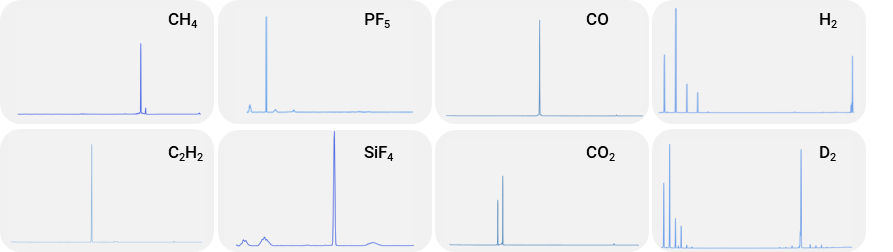

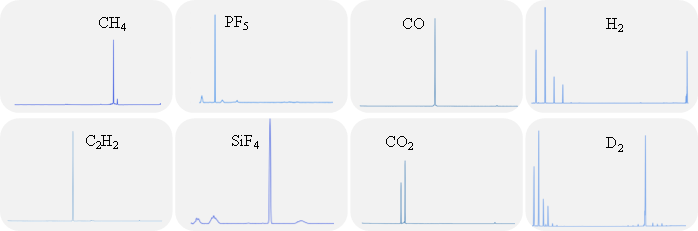

Standard gas spectra

Applications

Specifications

Technical Principle Raman scattering spectroscopy
Laser excitation wavelength 532 ± 0.5 nm
Spectral coverage 200 ~ 4200 cm-1
Spectral resolution ≤8 cm-1 at full spectral range
Air circuit interface 6 mm standard tube fitting (3 mm, 1/8’’, and 1/4’’ are optional)
Warm-up time <10 min
Input voltage 100 ~ 240 VAC,50 ~ 60 Hz
Sample gas pressure <1.0 MPa
Ambient temperature -20 ºC ~ 55 ºC
Ambient humidity 0 ~ 90%RH
Unit dimensions 750 mm (Width) × 900 mm (Height) × 1400 mm (Depth)
Weight 250 kg
Explosion-proof ExdbebibmbpxbIICT4Gb / ExtbibmbIIICT135ºCDb
Sample gas temperature -50 ºC ~ 40 ºC
Connection interface RS485, RJ45, providing ModBus protocol, can adapt to multiple types of industrial control systems, and can provide feedback to the control system
