RS3100 Scientific Raman Spectrometer

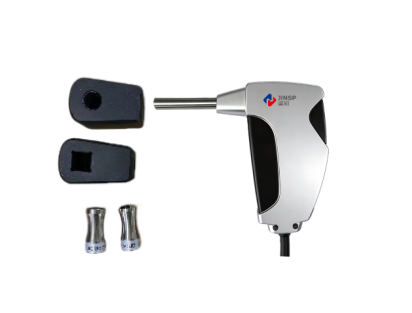

Low-fluorescence probe design:
The Raman probe employs a parabolic reflector instead of glass lens to eliminate signal interference from glass materials.
High signal-to-noise ratio:
The -80°C deep-cooled scientific camera (PI PIXIS 100B) provides high sensitivity and low noise.
High stability:
A built-in small anti-vibration platform effectively protects the optical components.
Comprehensive software capabilities:
Multiple functionalities including data acquisition, data smoothing, noise reduction, difference spectra, comparison, and the establishment of quantitative analysis methods.
Multifunctional detection accessories:
Solid sample holders, liquid sample holders, sealed detection chambers, etc., suitable for the detection of various sample forms including solids, powders, liquids, and more.
1. Material analysis
2. Crystal type research
3. Gas detection
4. Fundamental scientific research
Excitation wavelength | 532 nm |
Laser power | 0-100 mW, continuously adjustable |
Spectral coverage | 100 ~ 3700 cm-1 or 100 ~ 4200 cm-1 (depending on the camera) |
Spectral resolution | < 8 cm-1 (with 50 μm slit), or < 6 cm-1 (with 25 μm slit) |
Weight | < 20 kg |
Wavelength stability | < 0.01 nm |
Detector | Scientific-grade deep-cooled camera (PI PIXIS 100B) |
Spectrometer | Transmission high-throughput spectrometer |
Standard accessories | Solid sample holder, liquid sample holder, light-shielded sample chamber |
Optional accessories | Microscope, mechanically adjustable sample stage |
Software functions | Spectrum acquisition, spectrum data processing, spectrum comparison, device calibration |
Operating environment | Operating temperature: 0 ~ 40 °CStorage temperature: -20 ~ 55 °C |
Data output format | SPC, txt, prn, and other formats are available |
Power supply | 100-240 VAC, 50-60 HZ |
![Silver medal in Geneva inventions 2023](http://www.jinsptech.com/uploads/Geneva2023-Transmission-spectrometer.png)
![Silver medal in Geneva inventions 2022](http://www.jinsptech.com/uploads/Geneva2022-miniature-Raman.png)
Brochure - RS3100 scientific Raman spectrometer (English version)
Brochure - RS3100 scientific Raman spectrometer (Russian version)
