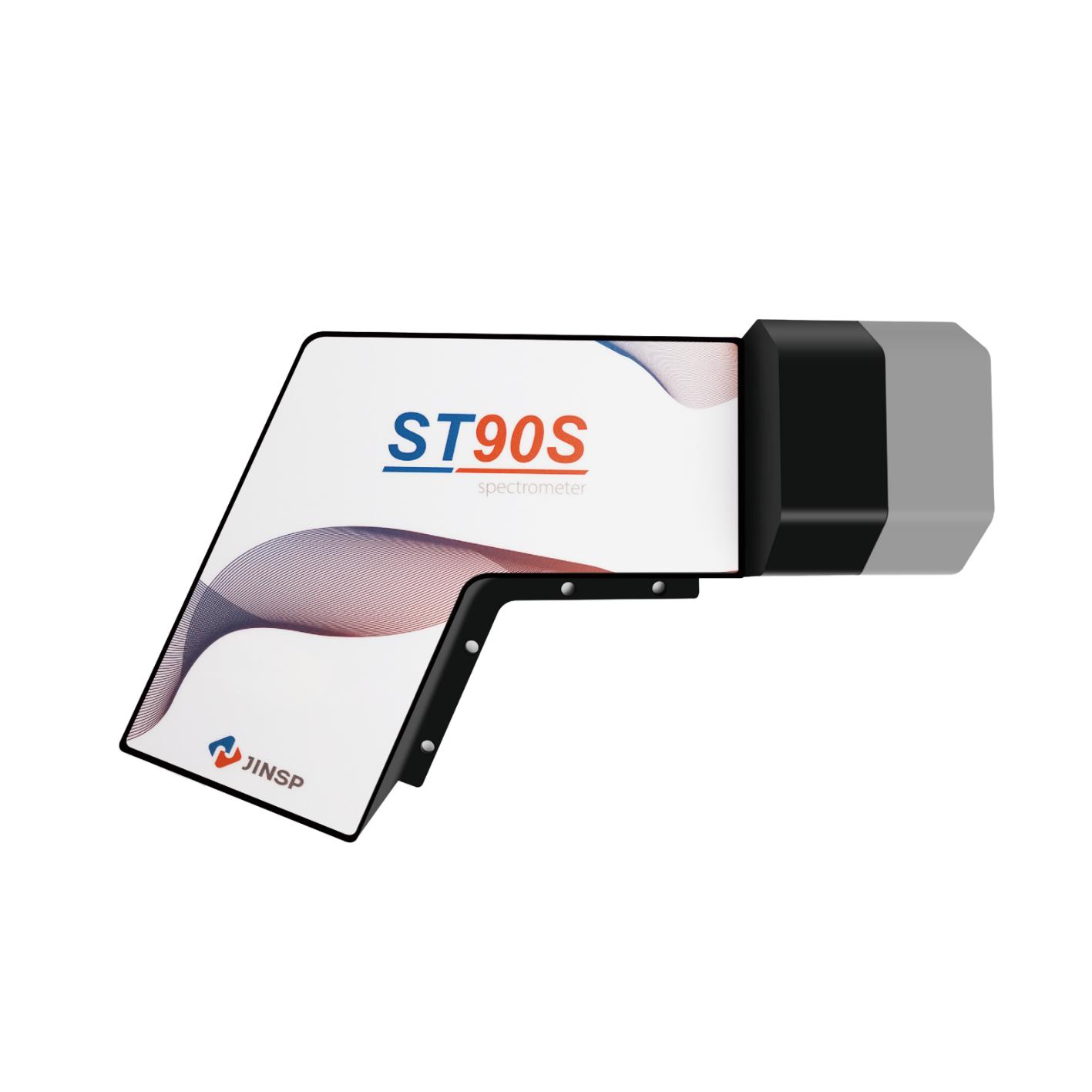

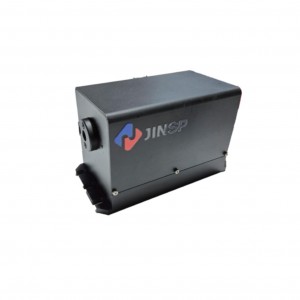

ST90S Transmission Imaging Spectrometer

Short Description:

The JINSP ST90S transmission imaging spectrometer is equipped with VPH volume phase holographic transmission grating, with a diffraction efficiency of 90% and excellent light path.The advanced featured spectrometer can reach sensitivity five times greater than that of are flective spectrometer, and its resolution is twice as high as that of conventional spectrometers, resulting in a perfect spectrum detection effect. Additionally, it is paired with a high-quality deep-cooling CCD array camera designed for standard research applications, ensuring excellent quantum efficiency and a high signal-to-noise ratio.

The ST90S is well-suited for 532nm laser Raman spectrum detection systems, particularly in the context of gas Raman signal detection. With exceptional optical properties, a spectrum range of up to 4200 cm^-1, and a resolution of up to 4 cm^-1, it can replace large imported reflection spectrometers used for scientific research. Furthermore, it has excellent stability and compact size, making it ideal for integrating industrial equipment.

Send email to us

Product Detail

Product Tags

Typical Applications

• Research-grade Raman spectroscopy detection system: 532nm Confocal Raman microscopy

• Integration of industrial Raman system: Capable of online gas detection and process analysis

Technical Characteristics

• High compatibility

Compatible with multiple scientific research grade cooling cameras such as Pl and Andor, with ultra-low dark current and noise

• Zero-aberration

Zero aberration design, diffraction-limited resolution

• Highly stable

No adjustable components, applicable to labs and industries

• High Flux

High flux, numerical aperture is 0.25

• High Diffraction Efficiency

VPH grating, diffraction efficiency up to 90%

• Support Multiple channels

Compatible with SMA905 optical fiber and ф10mm multi-core optical fiber input interface

Product parameters

	Performance Indicators	Parameters
Detector	-	See model table for detailed parameters
Optical Parameters	Wavelength Range	ST90S1: 540nm~686nmcorresponds to 260~4200cm^-1 ST90S2: 532nm~670nm corresponds to 0~3850cm^-1
	Optical Resolution	0.25nm, corresponds to 8cm^-1(50um slit) 0.14nm, corresponds to 5cm^-1(25um slit)
	Grating Type	VPH volume holographic transmission grating
	Diffraction Efficiency	>85%
	Fiber Interface	SMA905 or Ф10mm multi-core optical fiber
	Numerical Aperture	0.25
Electrical Parameters	Integration Time	1ms-3600s
	Data Output Interface	USB2.0
	ADC Bit Depth	16-bit
	Power Supply	DC12V (ST90S1~ST90S4) DC5V (ST90S5)
	Operating Current	3A (typical value 2A)
	Operating Temperature	-20°C~60°C
	Storage Temperature	-30°C~70°C
	Operating Humidity	<90% RH (non-condensing)
Physical Parameters	Dimensions	330mmx216mmx130mm
Physical Parameters	Weight	<6kg (including camera)

List of Product Models

Product Model	ST90S1	ST90S2	ST90S3	ST90S4	ST90S5
Detector Brand or Model	AndoriVac 316	PI PIXIS 100BX	Raptor261Fl	Raptor261Bl	Hamamatsu S7031
Chip Type	Deep depletion of back illuminated	Back illuminated	Front illuminated	Back illuminated	Back illuminated
Quantum Efficiency	80%@600nm	90%@600nm	45%@600nm	80%@600nm	92%@600nm
Number of Pixels	2000*256	1340*100	2048*256	2048*256	1044*128
Pixel Size (μm)	15*15	20*20	15*15	15*15	24*24
Image Area(mm)	30*3.8	26.8*2.0	30*3.8	30*3.8	24.6*2.9
Cooling Temperature (°C)	-70	-80	-70	-70	-20
